This blog is a note of learning C# and .NET.

Visual Studio C# Project Templates

Visual Studio offers a variety of project templates tailored to different types of applications.

• Console App: A lightweight application that runs in the command line. Perfect for learning, utilities, and background services.
• Class Library: Used to create reusable logic and components that can be referenced by other apps.
• ASP.NET Core Web App/API: Used for building web applications and RESTful APIs using the ASP.NET Core framework.
• Windows Forms App: For building classic Windows desktop GUI applications with drag-and-drop interface tools.
• .NET MAUI App: A cross-platform UI framework that lets you build apps for Android, iOS, macOS, and Windows using a single codebase.

.NET Framework vs .NET Core / .NET 5+

.NET is a development platform used to build and run a wide range of apps.

Features of .NET Framework / .NET

• Consistent Programming Environment: Whether you’re building a mobile app, web app, or desktop app, the programming experience is unified.
• Secure Execution: The runtime provides memory and thread management and enforces type safety.
• Common Language Runtime (CLR):
  • Manages memory allocation and garbage collection.
  • Handles threading and code execution.
  • Enforces strong typing rules.
• Base Class Library (BCL):
  • A rich set of built-in classes and methods that help developers avoid “reinventing the wheel.”
  • Includes support for file handling, collections, data types, networking, etc.
• High-level Application Layers: Web, mobile, and desktop frameworks are built on top of the BCL and CLR.

.NET Compilation Workflow

When compiling and running a .NET program, it follows these steps.

1. Source Code (C#) is written and saved.
2. The C# compiler compiles the code into MSIL (Microsoft Intermediate Language) — a CPU-independent set of instructions.
3. The Common Language Runtime (CLR) loads the MSIL code.
4. The JIT (Just-In-Time) Compiler translates the MSIL into native code for your machine’s architecture.
5. The native code is then executed.

C# Source Code → MSIL → CLR + JIT → Native Code → App Runs

.NET also supports Native AOT (Ahead-of-Time compilation), which skips the JIT step and compiles directly to native code ahead of time — improving startup performance and reducing runtime dependencies.

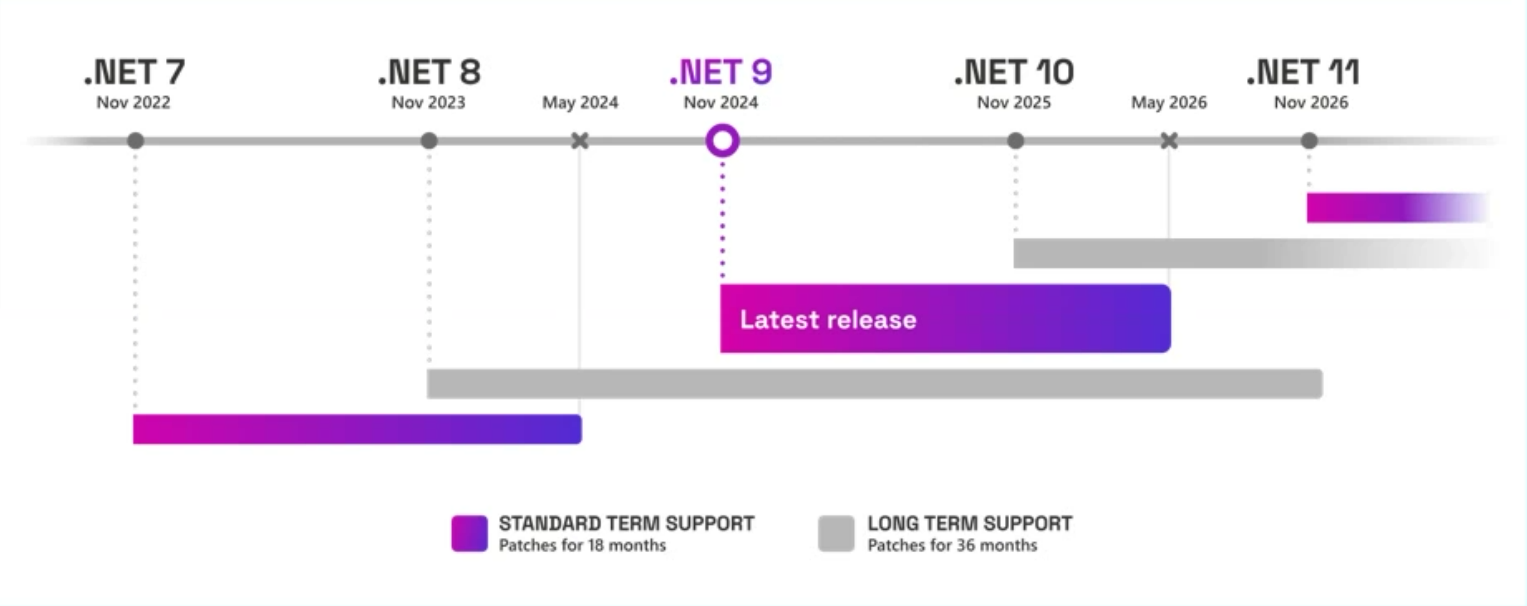

.NET Support Policy

Microsoft releases a new version of .NET every November, alternating between Long-Term Support (LTS) and Short-Term Support (STS).

• LTS (Long-Term Support): Supported for 3 years.
• STS (Short-Term Support): Supported for 18 months.

Version	Type	Support Ends
.NET 8	LTS	Nov 10, 2026
.NET 9	STS	May 12, 2026
.NET 10	LTS	Nov 2028 (est.)

Create a C# Console App

Using VS Code

1. In VS Code, go to File → New File.
2. Open the command palette (Ctrl+Shift+P or Cmd+Shift+P) and select .NET: New Project.
3. Choose Console App as the project template.
4. Enter the project name and check Add Directory to create a new folder for your project.
5. Select to create a solution file (.sln) for your project.
   Why choose .sln?
   A .sln file is a Visual Studio solution file that can manage multiple projects together. Even if you start with a single project, using a solution file helps you organize and scale your codebase more easily.
6. Click Show all template options, select .NET 8.0 as the target framework.
7. Find “Do not use top-level statements” and set it to True if you want the classic Program class with a Main method instead of top-level statements.
8. Click Create Project.

Using Command Line

dotnet new console --use-program-main -n CmdConsoleApp -f net8.0

• console
  Creates a Console Application project.
• --use-program-main
  This option tells the template to generate the traditional Program class with a Main method as the program entry point, instead of using top-level statements.
  Top-level statements are a newer C# feature (introduced in C# 9) that let you write minimal code without explicitly declaring Main.
• -n CmdConsoleApp
  Sets the project name to CmdConsoleApp. A folder with this name is created to hold the project files.
• -f net8.0
  Targets the .NET 8.0 framework.

Other Parameters for dotnet new console

• --output or -o
  Specify the output directory for the project.
• --framework or -f
  Target a specific .NET framework version, e.g. net6.0, net7.0, net8.0.
• --language or -lang
  Choose the language: C# (default), F#, or VB.
• --no-restore
  Create the project without automatically restoring dependencies.
• --force
  Overwrite existing files if the target directory is not empty.
• --help
  Show detailed help about the command and options.
• --use-top-level-statements
  Explicitly control whether to use top-level statements (true by default in recent .NET SDKs). Setting this to false generates the traditional Program class and Main method.

Top-level Statements

Top-level statements simplify C# programs by allowing you to write code directly at the file level without boilerplate like:

class Program
{
    static void Main(string[] args)
    {
        Console.WriteLine("Hello World!");
    }
}

Instead, you can just write:

Console.WriteLine("Hello World!");

The compiler implicitly creates the Main method behind the scenes. This feature improves readability and speeds up small app creation, but sometimes you want to disable it for clarity or compatibility — which is when you use --use-program-main or set “Do not use top-level statements” to true in VS Code.

.sln & .slnx

When creating a .NET project (especially in Visual Studio or VS Code), you’ll often encounter two solution-related options:

• .sln file
• .slnx file (a newer concept)

.sln file

.sln stands for Solution File in Visual Studio.

• It’s a traditional, text-based file used by Visual Studio to manage one or more .csproj or .vbproj projects as a group.
• It stores project references, build configurations (Debug/Release), dependencies between projects, and IDE-specific settings (like opened tabs, breakpoints, build order).
• It’s especially useful in multi-project applications, such as:
  • Web API + Class Library
  • Frontend + Backend + Shared code
  • Unit tests + main app

Example structure:

MySolution/
├── MySolution.sln         <- the .sln file
├── ProjectA/
│   └── ProjectA.csproj
├── ProjectB/
│   └── ProjectB.csproj

Where it’s used:

• Fully supported in Visual Studio and VS Code (with C# Dev Kit).
• Can be created/modified manually or via dotnet CLI (dotnet new sln).
• Used for building, debugging, and managing multiple projects together.

.slnx file

.slnx is not a Microsoft standard file format like .sln. It is used by the C# Dev Kit extension in Visual Studio Code to improve cross-platform and lightweight solution management.

• Introduced to enable project grouping and navigation in VS Code, especially when you don’t want or need a full Visual Studio-style .sln.
• It’s essentially a lightweight solution file format used only by the C# Dev Kit extension.
• It doesn’t support advanced features like build configuration, launch profiles, etc.

How it works:

• VS Code will generate a .slnx when you open a folder containing multiple .csproj files and you choose to create a solution-like experience.
• It stores the list of projects in a simple format and integrates into the “Solution Explorer” in the sidebar.

Structure of a Console App

After creating a new console app, your project folder will look like this:

ConsoleApp/
├── Program.cs
├── MyConsoleApp.csproj

Explanation of Files

• Program.cs
  The main entry point of your app. Contains the Main method:

  using System;

  namespace MyConsoleApp
  {
      class Program
      {
          static void Main(string[] args)
          {
              Console.WriteLine("Hello, World!");
          }
      }
  }

  • using System; imports basic functionalities (like Console).
  • Main(string[] args) is the first method that runs.
  • Console.WriteLine() prints text to the terminal.

• .csproj File
  A project configuration file in XML format that defines:

  • Target framework
  • Dependencies
  • Build settings

  Example:

  <Project Sdk="Microsoft.NET.Sdk">

    <PropertyGroup>
      <OutputType>Exe</OutputType>
      <TargetFramework>net8.0</TargetFramework>
    </PropertyGroup>

  </Project>
